The Tree Menu

The tree view is used to display your collection in its hierarchical structure; however it may also be used as the basis for adding records to the Collection using the Tree Menu.

To add records to a collection using the tree menu you must first open the tree to see all the records in their hierarchical context. Below there is an example of a tree based on the RefNo field in an archive Catalogue collection:

2903 The Vines family of Seagry
1 Bonds, letters and receipts
2 Papers principally of Thomas and Robert Vines
3 Papers of the Adye family of Seagry
4 Papers relating to the estate of the Vines family in Seagry

Create Child

To create a child record (i.e. to add a record at the level below the current record):

Highlight the record you wish to add a child record to by clicking on it in the tree. Make sure that the record is fully highlighted in a solid colour, not in grey.

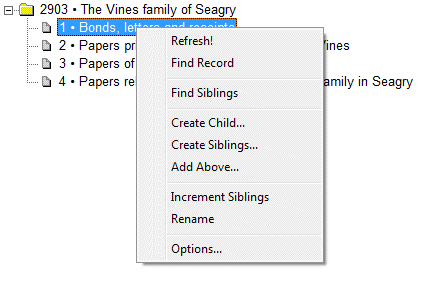

Right click with the mouse on the record, the tree menu will appear as below.

This tree menu has the following options: Refresh, Find Siblings, Create Child, Create Siblings, Add Above, Increment Siblings, Rename and Options.

Select Create Child, the choose Record Type dialogue box will appear, select the record type you wish to use and click OK

The new record is created. The tree field (in the above example the RefNo field) of the new record will contain the same contents as that of the same field in the parent record. This will be followed by the level separator (“/” or “.”)

In the above example the data in the new RefNo field would be 2903/1/

It is now important to remember to enter the new unique identifier after the level separator (“/” or “.”).

Complete any mandatory fields on the new record

Save and refresh by clicking the button in the tool bar or by pressing F12 on your keyboard then right-clicking in the tree view and choosing Refresh

NB: In the ObjectNumber field, the '.' would be used as a level separator.

Create Siblings

You can use this option to create one record or several different records, on the same level at the same time. It works in exactly the same way as Create Child above except that the RefNo that is copied across is at the same level as that of the original record.

Right-click on a record in the tree that you wish to create sibling records for

Click on Create Siblings

You will be asked to enter the number of records you wish to create, enter the appropriate number and click OK; the new records will be created

The new records will have the tree field completed with references which continue in sequence from that of their sibling/s. For example, in a tree like the example above, if you highlight the RefNo 2903/4 and create 2 siblings, 2 new records will automatically be created with RefNos of 2903/5 and 2903/6.

You may now access each record individually to enter data into the other fields. Enter the details of the catalogue records in the usual way. Once you have saved the records and refreshed the tree you will see the new record/s at the same level.

Add Above

The Add Above facility allows you to create a higher level in a tree than that of an existing record, however:

THIS OPTION DOES NOT CREATE RECORDS. IT ADDS BLANK NODES OR LEVELS INTO THE TREE REFNO HIERARCHY AND RE-NUMBERS AUTOMATICALLY ANY DEPENDENT OR LINKED RECORDS.

Add above is a powerful feature and should be used with caution. Please ensure that you mean to make changes before you carry them out.

If you wish to create a level in the tree above an existing record:

Select the record in the tree that you wish to add an additional level above

Right click on the record and click on Add Above.

You will be asked to provide a node; the text you type here will form the basis of the new RefNo.

For example if you have a record with the reference 2903 and added a level above it, calling the node ABC, the new level would be ABC and the RefNos of all records below it would automatically be updated with a prefix of ABC/ so 2903 would become ABC/2903 and 2903/4 would become ABC/2903/4.

NB: In the ObjectNumber field, the '.' would be used as a level separator.

When working with Archive record types in the Catalogue database a supporting Add Above facility is also available from the button strip. To access the Add Above facility from the button strip:

Click the button on the button strip

Click the button

This option can be used to convert a level in the RefNo hierarchy into a record. In the above example once the node ABC had been inserted into the RefNo 2903 selecting Record > Add Above from the button strip would create a real record with a RefNo=2903.

Increment Siblings

The Increment Siblings option acts as a re-numbering function. It is useful if you have created a number of sibling records in a tree but then realise that you need to insert another sibling into the middle of the group and renumber all subsequent siblings. If you wish to do this:

Select the record which you wish to increment at in the tree

Right click on the record in the tree, the tree menu will appear

Choose Increment Siblings, you will see a warning message explaining what is about to happen; click OK to proceed

The reference in the tree field on this record and any records below it will be increased by one. In the example above, if you select 2903/2 and increment siblings, this record will be re-numbered to 2903/3, 2903/3 will become 2903/4 and 2903/4 will become 2903/5. Any children such as 2903/3/1 would also be renumbered, in this case to 2903/4/1.

You are then free to add a record in the gap left by the original record, in this example 2903/2.

Renumber Children

If you have moved records from one part of the structure to another it is possible that reference numbers are now duplicated. To prevent this, click with the right mouse button on the new parent (the record above where you have moved the children to), to display the options and select Renumber Children. Calm will automatically renumber the moved records to remove any possible duplicates.

Rename

The Rename function allows you to change the contents of the tree field for a record in the tree; it automatically updates the record and any records below it. For example if you right clicked on an archive catalogue record in the tree and changed its RefNo from 2903 to 1200, the records 2903/1 to 2903/4 would automatically be renamed as 1200/1 to 1200/4.

Find Siblings

The Find Siblings option is always available when you are in any level of a tree. It displays a hit list of all sibling records of the highlighted record, so that you can scan through them one by one. To overview all the records select View, Overview from the menu bar.

Find Children

This option works in exactly the same way as Find siblings above but you must choose a record with levels beneath it for children to be displayed.

Expand Branch

If you are browsing through the tree structure and are at the top level of a branch it can be time consuming to manually open up every sub-branch. If you click on Expand Branch every level of that branch will open up.

Collapse Branch

This option is the opposite to expand branch i.e. it automatically closes every level of the branch below the record you are viewing.

Tree options

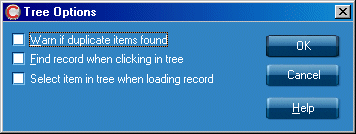

The last heading on the menu which appears when you click in the tree with the right mouse button is Options. The following dialogue box appears when you click on it :

Options are: Warn if duplicate items found, Find record when clicking in tree and Select item in tree when loading record, OK, Cancel and Help buttons are also shown.

The Tree options work as follows:

Warn if Duplicate Items Found
If this option is checked you will receive a warning if you open a tree in which there is more than one record with the same content in its tree field.

Find Record When Clicking in Tree
If this option is checked when you click on an item in the tree window, the corresponding record is automatically displayed in the main database window.

Select Item in Tree When Loading Record
If this option is checked, when you view a record in the main database window, that record will be selected in the tree.
